BBraun Outlook 100

$895.00

The first smart pump in the line of BBraun infusion products, the Outlook™ 100 provides ease of use with added safety of smart pump technology.  DoseGuard™ Software offers the ability of clinicians to set drug limits to your hospital drug formulary and patient care settings, notifies clinicians when hospital-defined does limits are exceeded, and provides options for clinicians to accept or amend the data as required.  Paired with its modular design the Outlook™ 100’s safety and reliability are a great platform in any clinical setting.

Contact Us to place an order.

Category:

Product Description

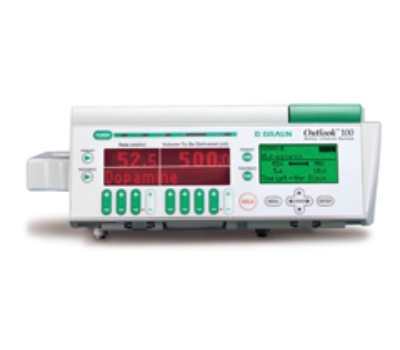

Outlook™ 100

Specifications

Mechanism:

Volumetric, Positive Pressure Displacement Reservoir

Flow Rate Range:

0.1 mL/hr to 999.9 mL/hr in 0.1 mL/hr increments

0.1 mL/hr to 99.9  mL/hr in 0.1 mL/hr increments (Micro Mode)

Volume to be infused:

0.1 to 9999.9 mL in 0.1 mL increments

Variable Occlusion Pressure:

75, 100, 200, 300, 400, 500, 750 mmHg

KVO Flow Rate:

3 mL/hr or selected rate (whichever is lower)

Volumetric Accuracy:

±5%

Dimensions:

Width – 12.0 in.

Height – 4.5 in.

Depth –  8.75 in.

Weight – 11.0 lbs.

Internal Battery:

12 V sealed lead-acid battery

Battery Capacity:

Approximately 3 hours at 125 mL/hr (based on a new, fully charged battery)

Power Requirements:

120 VAC, 3 A, 60 Hz USA (excluding accessories)

Grounding Resistance:

Meets UL Standard 2601-1

Leakage Current:

Meets or Exceeds UL Standard 2606-1

Alarms:

Air-In-Line, Bag Empty, Door Open, Downstream Occlusion, Hold Time Exceeded, Low Battery, Plug-In, System Error, Upstream Occlusion, Check Set, DoseGuard™ Alert

Memory:

Permanent data retention after the pump is turned off unless alternative Data Retention Defaults have been selected in the Biomed Options

Tubing:

 Horizon® Pump Sets

Features/Modes

  • Dose Mode with Drug Menu and DoseGuard™ dose limits
  • Primary and Piggyback Modes
  • Set Time and Volume
  • Schedule Next Run
  • Profile Mode for TPN
  • Program Mode
  • q(x) Mode
  • Site Trend
  • Variable Occlusion Pressure
  • Micro Mode
  • Epidural Mode
